Bulk Upload Win32 Apps to Intune With PowerShell and Microsoft Graph API

Bulk uploading Win32 applications to Microsoft Intune can become time-consuming when you need to package applications, create Entra ID groups, configure detection rules, assign applications, and repeat the same process for dozens of applications.

This guide demonstrates how to automate the complete deployment process using PowerShell and the Microsoft Graph API. Instead of uploading every application manually, the automation reads configuration files, packages applications, uploads them to Intune, creates assignment groups, and assigns applications automatically.

By the end of this guide, you’ll understand how the solution works, what it supports, and how to customize it for your environment.

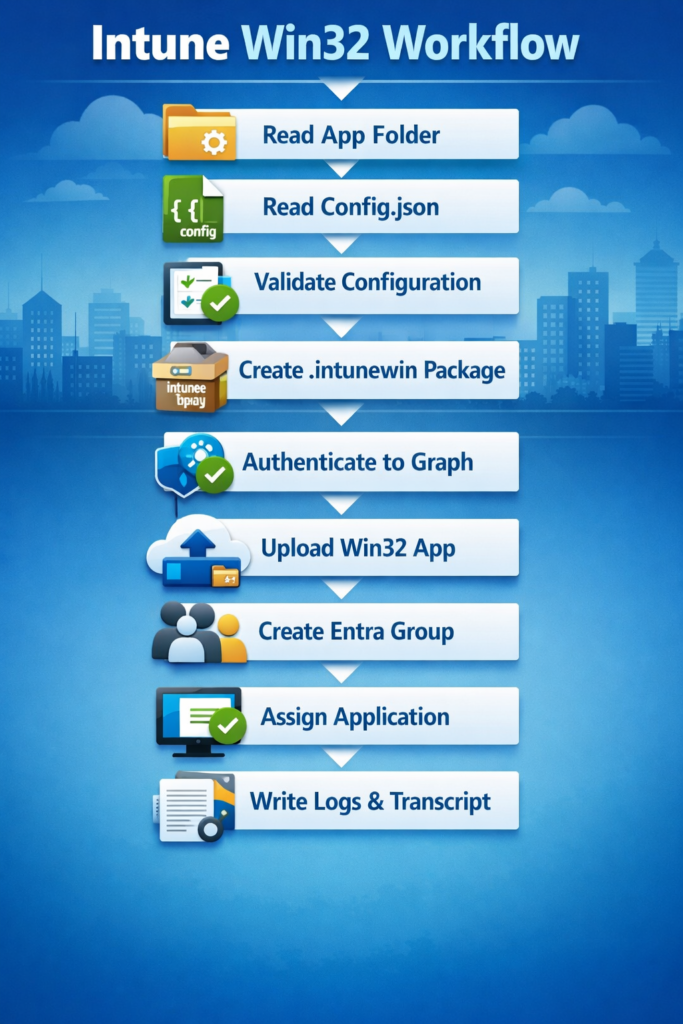

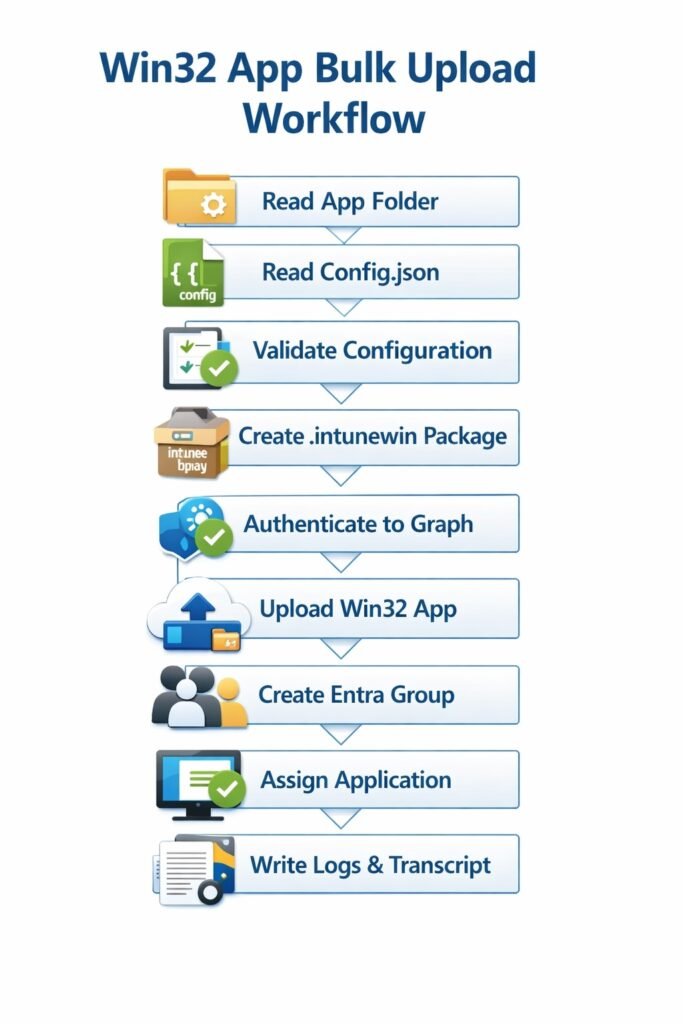

Win32 App Bulk Upload Workflow

The following workflow illustrates how the PowerShell automation deploys Win32 applications to Microsoft Intune. From reading the application folder to creating Microsoft Entra groups and assigning applications, each step is performed automatically to minimize manual effort and ensure consistent deployments.

The sections below explain each stage of the workflow in detail.

How the Automation Works

Read Application Folder

The script begins by scanning the specified application root folder and identifies each subfolder as a separate application. It verifies that the required installation files and configuration file are present before proceeding with the deployment.

Read Config.json

For each application, the script reads the Config.json file to retrieve deployment settings such as the application name, publisher, installation command, uninstall command, detection rule, assignment group, and other metadata. This allows every application to be deployed using its own configuration without modifying the PowerShell script.

Validate Configuration

Before packaging the application, the script validates the configuration to ensure all required properties are present and correctly formatted. If mandatory values are missing or invalid, the deployment for that application is skipped and the error is recorded in the log.

Create .intunewin Package

If the application package has not already been created, the script automatically packages the installer using the Microsoft Win32 Content Prep Tool. The resulting .intunewin file is then prepared for upload to Microsoft Intune.

Authenticate to Microsoft Graph

The script authenticates to Microsoft Graph using the configured Azure App Registration and required application permissions. Once authentication succeeds, all subsequent operations—including application creation, group management, and assignments—are performed through Microsoft Graph APIs.

Upload Win32 App

The script uploads the generated .intunewin package to Microsoft Intune and creates the Win32 application using the settings defined in the configuration file. It also configures application metadata, installation commands, detection rules, return codes, and other deployment properties automatically.

Create Microsoft Entra Group

If specified in the configuration, the script creates a Microsoft Entra security group for the application. This eliminates the need to manually create assignment groups for every application and ensures a consistent naming convention.

Assign Application

After the application and security group have been created, the script automatically assigns the Win32 application to the configured Microsoft Entra group. Assignment intent, such as Required or Available, is applied based on the values defined in the configuration.

Write Logs & Transcript

Throughout the deployment process, the script records detailed log entries and generates a PowerShell transcript. These logs help administrators verify successful deployments and quickly troubleshoot failures by identifying the exact step where an error occurred.

Intune Automation Script Components

1. Configuration Validation

The script validates:

• Required JSON properties
• Empty values
• Installer file existence
• Folder name vs DisplayName mismatch
• Detection rule structure

Example validation logic:

if ($folderName -ne $Config.DisplayName) {

    Write-Log @"
Folder name does not match DisplayName.

Folder Name : $folderName
DisplayName : $($Config.DisplayName)
"@ "ERROR"

    $validationFailed = $true
}

This helps avoid deployment issues caused by copied configuration files. This helps in cleaner transcript logs and easier troubleshooting.

2. Centralized Logging

Instead of scattered Write-Host calls, the script uses a centralized logging function.

Example:

function Write-Log {

    param(
        [string]$Message,

        [ValidateSet("INFO","WARN","ERROR","SUCCESS")]
        [string]$Level = "INFO"
    )

    $timestamp = Get-Date -Format "yyyy-MM-dd HH:mm:ss"

    switch ($Level) {

        "INFO" { $color = "White" }
        "WARN" { $color = "Yellow" }
        "ERROR" { $color = "Red" }
        "SUCCESS" { $color = "Green" }
    }

    Write-Host "[$timestamp] [$Level] $Message" `
        -ForegroundColor $color
}

3. Automated Packaging

The script automatically creates .intunewin packages using IntuneWinAppUtil.exe.

Example:

Start-Process `    -FilePath $intuneUtilPath `    -ArgumentList $arguments `    -Wait `    -WindowStyle Hidden

4. Entra Group Creation

The script checks whether a group already exists before creating it.

Benefits:

• Prevents duplicate groups
• Safe re-execution
• Better bulk deployment experience

5. Assignment Handling

The script:

• Assigns apps automatically
• Prevents duplicate assignments
• Supports Available intent

Prepare the Environment

Before you begin, prepare your environment by installing the required tools, configuring Microsoft Graph permissions, organizing the application folder structure, and updating the Config.json file. Completing these steps ensures the automation script can successfully package, upload, and assign Win32 applications in Microsoft Intune.

Prerequisites

Microsoft Intune and Microsoft Entra Access

An active Microsoft Intune environment and appropriate administrator access to Microsoft Intune and Microsoft Entra ID are required to configure the application deployment and assignment resources.

Required PowerShell Modules

Install the following PowerShell modules before running the script:

• MSAL.PS – Used for Microsoft Entra authentication.
• IntuneWin32App – Used to package and upload Win32 applications to Intune. The script has been tested with version 1.5.0.

Microsoft Win32 Content Prep Tool

Download IntuneWinAppUtil.exe from the Microsoft Win32 Content Prep Tool GitHub repository. The tool is used by the script to package application source files into the .intunewin format required by Intune.

Application Source Files

Store each application’s source files and its corresponding Config.json file in an individual folder under the Apps directory. The folder structure is described in the Application Folder Structure section below.

PowerShell Execution Policy

Ensure your PowerShell execution policy allows the script and required modules to run. If your environment restricts script execution, configure the appropriate execution policy according to your organization’s security requirements.

Microsoft Entra App Registration

The script uses a service principal for unattended authentication, allowing it to connect to Microsoft Intune and Microsoft Graph without requiring an administrator to sign in interactively each time the script runs. To enable this, create a Microsoft Entra App Registration and use its Tenant ID, Client ID, and Client Secret in the script.

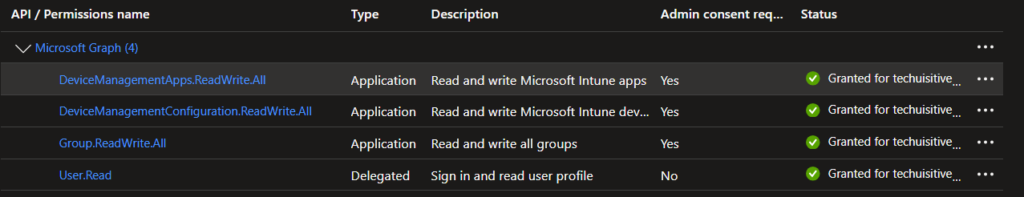

Grant the application the following Microsoft Graph application permissions and provide admin consent:

DeviceManagementApps.ReadWrite.All
DeviceManagementConfiguration.ReadWrite.All
Group.ReadWrite.All

These permissions allow the script to create and manage Intune applications and configurations, as well as create and manage Microsoft Entra groups used for application assignments.

Current Limitations

Currently Supported

• MSI Detection Rules

Planned for Future Release

• File, Registry, and Script Detection Rules
• Icon Upload Support
• Supersedence Support
• Requirement Rules Expansion

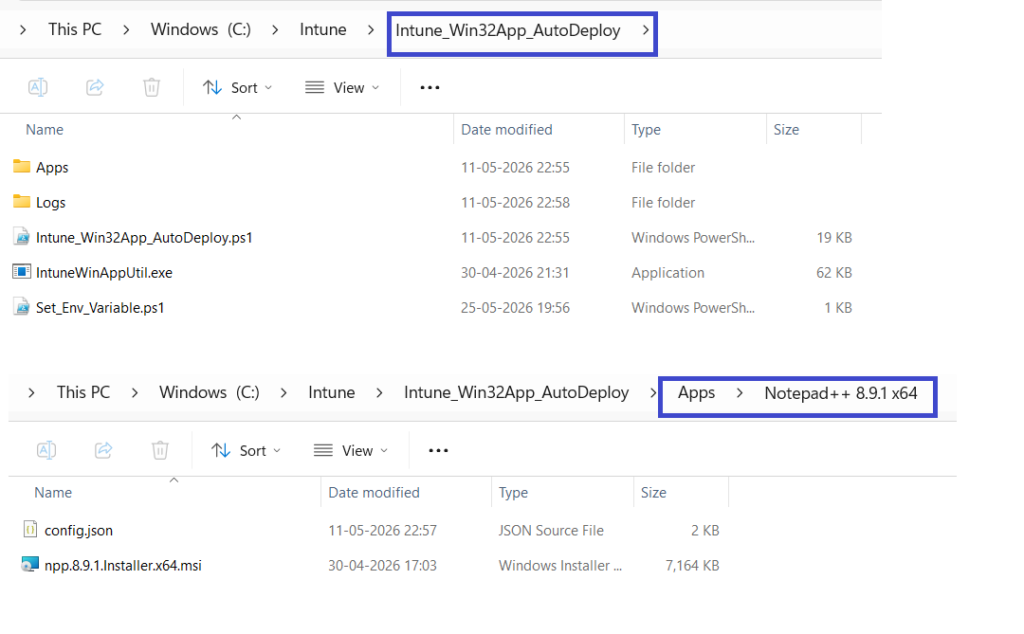

Folder Structure

The application installation source and configuration files need to be aligned as per the folder structure below.

Intune_Win32App_AutoDeploy/
│
├── Apps/
│   ├── Notepad++ 8.9.1 x64/
│   │   ├── npp.8.9.1.Installer.x64.msi
│   │   └── config.json
│   │
│   └── 7Zip 24.09/
│       ├── 7z2409-x64.msi
│       └── config.json
│
├── IntuneWinAppUtil.exe
├── Intune_Win32App_AutoDeploy.ps1
└── Logs/

Config.json Parameters

The Config.json file controls how each Win32 application is packaged, uploaded, and assigned. Update the following properties to match your application’s deployment requirements.

Detection Rule Parameters

Note: The current version of the script supports MSI-based detection rules. Support for File, Registry, and PowerShell Script detection rules may be added in a future release.

Sample Config.json File

{
  "DisplayName": "Notepad++ 8.9.1 x64",
  "Description": "Notepad++",
  "Publisher": "Notepad++",
  "AppVersion": "8.9.1",
  "InstallerName": "npp.8.9.1.Installer.x64.msi",

  "InstallCmd": "msiexec /i npp.8.9.1.Installer.x64.msi /qn /norestart",
  "UninstallCmd": "msiexec /x npp.8.9.1.Installer.x64.msi /qn /norestart",

  "CreateGroup": "Yes",
  "GroupName": "APP - Notepad++",

  "AssignApp": "Yes",

  "DetectionRules": [
    {
      "Type": "MSI",
      "Enabled": true,
      "ProductCode": "{7349B4F3-02E1-4234-A67A-FA85B33B67AF}",
      "ProductVersionOperator": "equal",
      "ProductVersion": "8.9.1"
    }
  ]
}

Download the Script

Download the latest version of the Bulk Win32 App Deployment automation script from GitHub. The repository includes the PowerShell script, sample Config.json file, folder structure, and supporting files required to automate Win32 application deployment to Microsoft Intune using Microsoft Graph API.

Download the complete Intune automation script from Techuisitive GitHub repository.

Run the Script

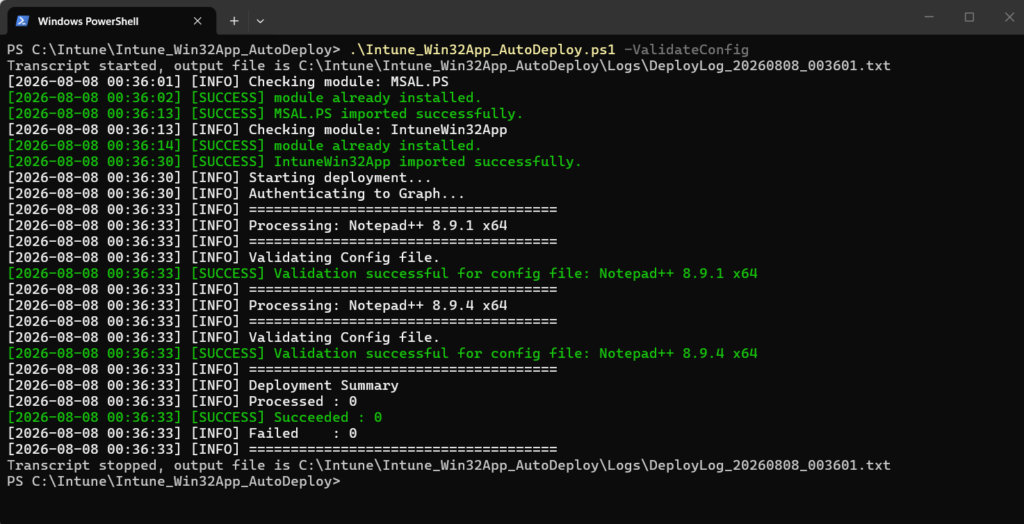

Configuration Validation Mode

The script supports a validation-only mode. This is useful before large bulk deployments, as you can validate the configurations before bulk upload. Any issues identified with the configuration can be fixed before the bulk upload.

Example:

.\Intune_Win32App_AutoDeploy.ps1 -ValidateConfig

This mode:

• Validates JSON files
• Checks the installer’s existence
• Verifies folder naming
• Skips upload and assignment

The Validate Config mode is useful before large bulk deployments. You can identify the fix the configuration issues before running the script in deployment mode.

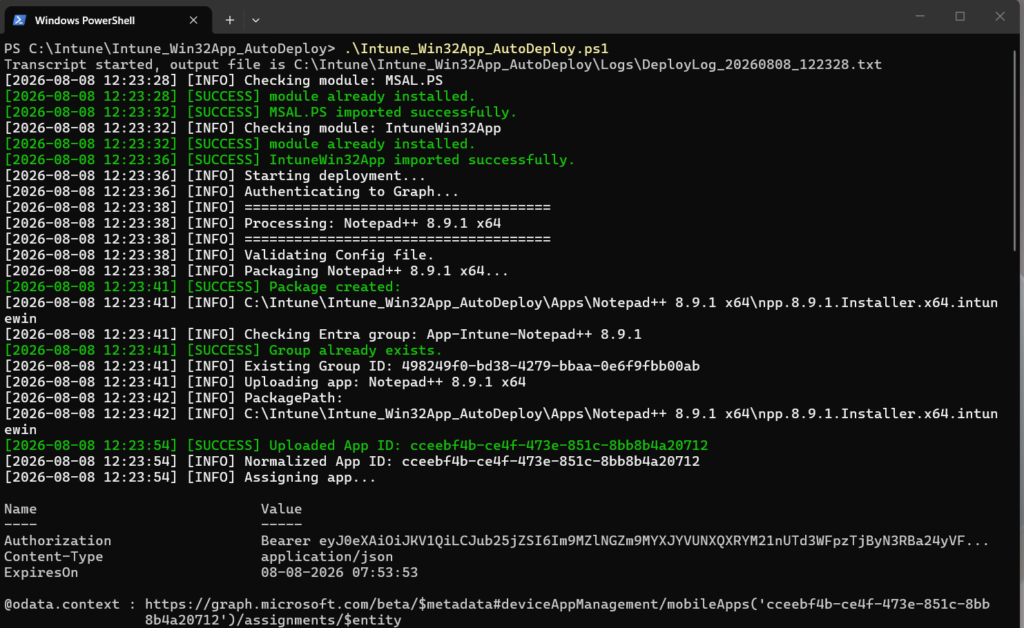

Deployment Mode

The script will run in deployment mode when executed without any parameters.

.\Intune_Win32App_AutoDeploy.ps1

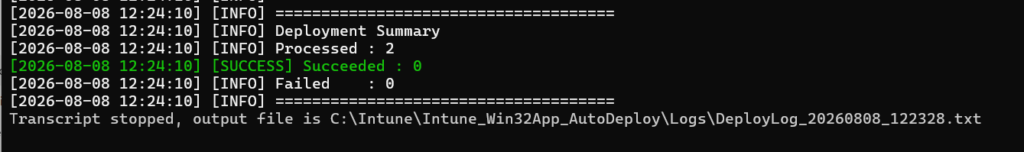

The script provides application deployment summary at the end.

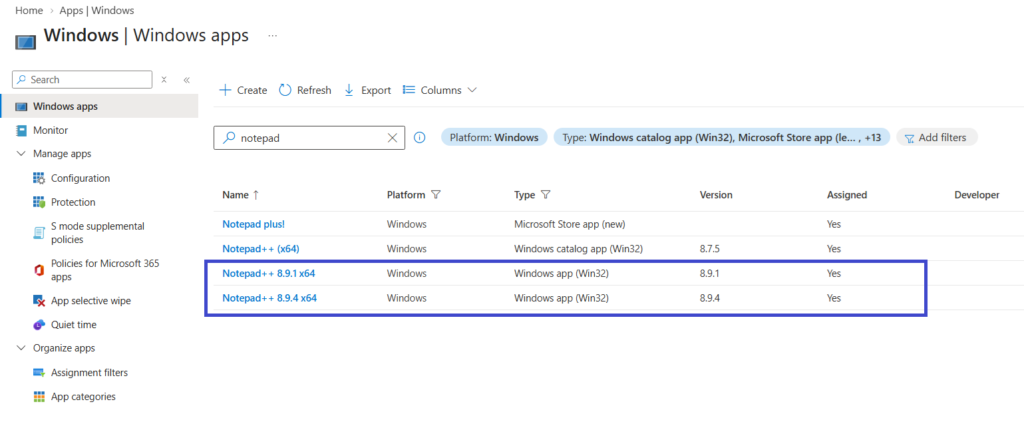

Verify the Deployment

After running the script, verify the deployment in the Microsoft Intune admin center. Under Apps > Windows apps, confirm that the Win32 applications have been created with the expected application name, version, and assignment status, as shown below.

In this example, both Notepad++ 8.9.1 x64 and Notepad++ 8.9.4 x64 were successfully created as Windows app (Win32) applications and show Assigned: Yes. This confirms that the application upload and assignment steps completed successfully.

Recommended Security Practice

Avoid storing secrets directly in the script. Instead, use environment variables:

$clientSecret = $env:INTUNE_CLIENT_SECRET

Set the user environment variable using the PowerShell command below. You need to run this with elevated PowerShell.

[System.Environment]::SetEnvironmentVariable(    "INTUNE_CLIENT_SECRET",    "YOUR_SECRET",    [System.EnvironmentVariableTarget]::User)

Benefits of This Intune Automation

This automation framework streamlines Win32 application deployment by reducing repetitive administrative tasks and ensuring a consistent deployment process across your Microsoft Intune environment.

Key benefits include:

• Reduces repetitive Intune administration
• Standardizes application onboarding
• Improves deployment consistency
• Minimizes manual configuration errors
• Accelerates bulk Win32 application deployments
• Simplifies application assignment using Microsoft Entra groups
• Generates detailed logs for easier troubleshooting

Ideal for:

• Managed Service Provider (MSP) environments
• Enterprise IT administrators managing large application portfolios
• Application packaging teams
• Test and lab environments
• Organizations onboarding multiple Win32 applications

Future Enhancements

Planned improvements include:

• File and Registry detection rules
• Script detection support
• Icon uploads
• Supersedence support
• Requirement rule expansion
• Dependency support
• Retry logic improvements
